That’s the brilliance behind telescopic hydraulic cylinders, an innovative solution for space-saving power in modern machinery.
At Zenith Hydromatic, we specialize in designing and manufacturing high-performance telescopic hydraulic cylinders tailored to meet the diverse needs of industries like construction, mining, agriculture, and material handling. In this post, we’ll explore how these multi-stage cylinders work, their unique benefits, and why they’re transforming how equipment is designed and operated.

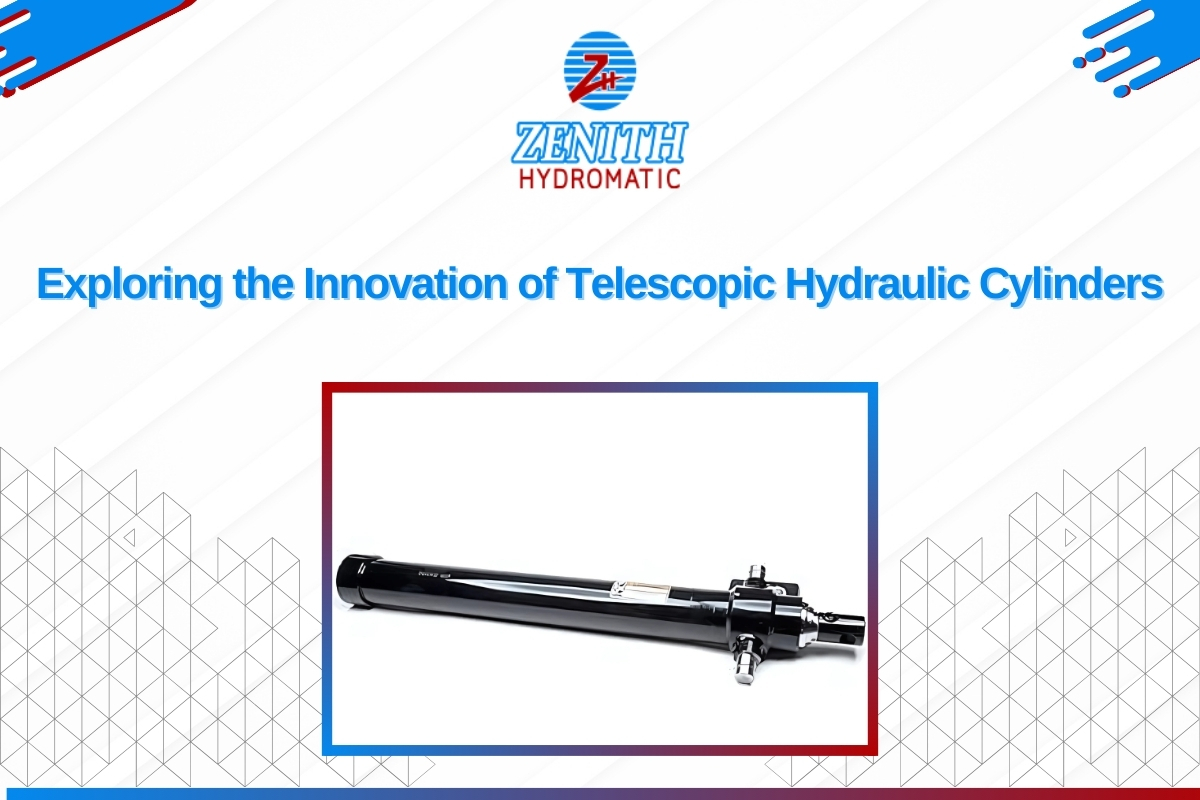

What Are Telescopic Hydraulic Cylinders?
A telescopic hydraulic cylinder is a type of actuator consisting of multiple nested steel sleeves, known as stages, which extend sequentially when pressurized. Unlike single-stage cylinders, which offer limited stroke lengths, telescopic cylinders can achieve long extensions while maintaining a compact retracted size, often only 20–30% of their full length.
There are three common types of telescopic cylinders:
- Single-acting: Uses hydraulic pressure to extend and gravity or an external load to retract.
- Double-acting: Uses hydraulic power for both extension and retraction—ideal when gravity cannot be relied upon.
- Constant-thrust: Designed for synchronized extension across all stages, commonly used in specialized industrial setups.
How Do Telescopic Cylinders Work?
These cylinders operate using hydraulic pressure that enters the largest sleeve (outermost stage) first. As this stage extends and reaches its limit, the pressure shifts to the next stage inside, and so on. This sequential extension provides smooth, controlled motion and maximizes the stroke capacity in confined spaces.
The operation varies slightly between single-and double-acting types:
- In single-acting systems, retraction is often achieved by the weight of the load or gravity.
- In double-acting systems, hydraulic fluid is used to both extend and retract the stages, providing more precise control, especially in horizontal or non-load-bearing applications.
Key Advantages of Telescopic Hydraulic Cylinders
Telescopic cylinders offer several practical and performance-related advantages:
1. Compact Design with Maximum Stroke
They offer long extension capabilities without taking up much space when retracted. This is ideal for vehicles and machinery with limited space.
2. High Force Output
Designed to handle heavy loads, they are capable of delivering powerful performance with minimal external components.
3. Smooth, Controlled Operation
The sequential extension and retraction offer better control, making them suitable for applications that require precision movement.
4. Versatile Application Range
Available in both single-acting and double-acting types, telescopic cylinders can be customized to suit various industrial requirements.
Applications Across Industries
At Zenith Hydromatic, we supply telescopic hydraulic cylinders that serve critical roles in multiple sectors:
- Construction: Used in dump trucks, tippers, and cranes to lift heavy materials with limited equipment space.
- Material Handling: Integrated into scissor lifts, dock levelers, and container loaders for efficient, high-lift movement.
- Agriculture: Enhances the functionality of tractors, trailers, and other farm equipment requiring long-stroke lifting.
- Mining and Drilling: Supports the elevation of platforms and the operation of drilling rigs in rugged environments.
- Custom Equipment: Our engineers design cylinders tailored to your specific application, ensuring optimal fit and performance.
Conclusion
Telescopic hydraulic cylinders are more than just space-saving components; they are essential innovations driving productivity across multiple industries. With long reach, high force output, and efficient space use, they’re changing the way heavy machinery is built and operated.
At Zenith Hydromatic, we don’t just supply cylinders—we engineer performance. Whether you need a standard model or a highly customized solution, our team is here to help.
FAQs About Telescopic Hydraulic Cylinders
What is a telescopic hydraulic cylinder?
A telescopic hydraulic cylinder is a multi-stage actuator designed to achieve long strokes from a compact retracted form. Each stage extends one after the other using hydraulic pressure.
Where are telescopic cylinders used?
They are commonly used in dump trucks, material handling equipment, agricultural trailers, mining rigs, and warehouse lifts—anywhere a long stroke is required within tight space constraints.
What is the difference between single-acting and double-acting cylinders?
- Single-acting
- Double-acting
Why are telescopic cylinders better for space-limited machinery?
They provide long extensions without taking up much space when not in use, making them ideal for equipment where space optimization is critical.
